Pool Deck Drain with 1.75-inch Wide Removable Tops 8 x 5-Ft Case

Pool Deck Drain with Removable Tops

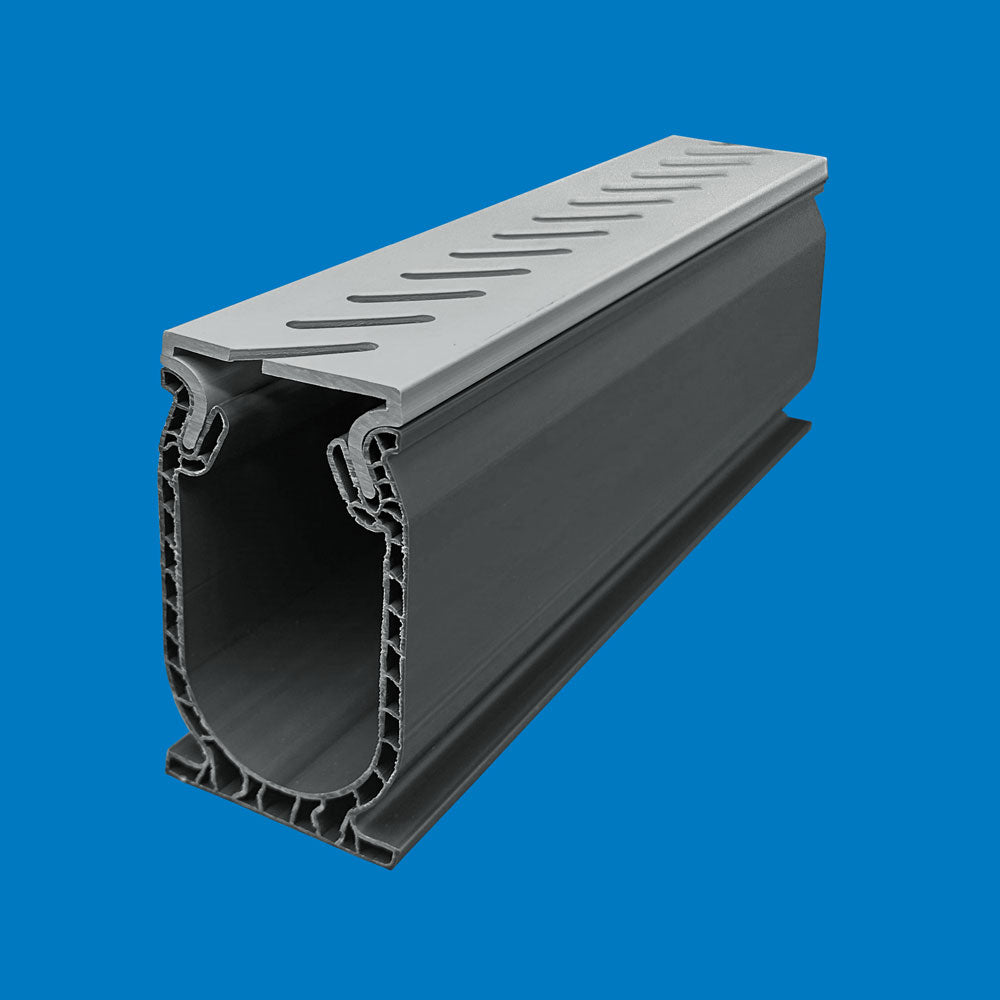

The 1.75" Frontier Deck Drain Pro is a Heavy-Duty, Durable Plastic Pool Deck Drain with a removable top drain that features a double wall base and a snap in top (PVC). When installing this drain, the tops are staggered past the joints making the joints very rigid. Because Frontier Pro Deck Drain tops are removable, this drain is easy to clean.  The drain top caps can be replaced if ever damaged.  Frontier Deck Drain Pro is used in many residential and commercial swimming pools, patios and other pedestrian traffic areas.

The Frontier Deck Drain Pro is an easy to use, very effective, and affordable deck drain that has been used for many years in pool decks, patios and other decorative concrete applications.  It is Stable, Cleanable,and the Top Caps are replaceable.

FEATURES

• Effective Drainage System with Removable Top for Concrete Pool Decks.
• Made of Tough, Long Lasting PVC, Non-Corrosive.

• Installs Easily. Couplings Snap other fittings together.


• Two-Piece type drain system (Base + Top Cap) and Effectively carries water away.
• Advantages: Make Easy Repairs or Change Colors for a New Look.
• Flat contour profile allows a tight fit against any wall.
• Non-Directional design eliminates the need for right or left fittings.
• No "Clean-outs" needed. If you want to clean a section out, simply lift the removable top and snap it back into place.

• Each case has equal number of bases and Equal Number of Top Caps.
• Note: For each fitting, you will need 2 couplings. (90's and 45's require 2-couplings. Tee's require 3-couplings, Cross Tee's require 4 couplings.)
• Replacement Deck Drain Tops available - See Top Caps.


• Sold in Full Case Lots of 40-FT - Sold as Eight (8) 5' Lengths per Carton.


Dimensions:

Width at Top:                  1-3/4" Wide @ Top (Top Cap Width)
Width at Middle:             1-7/8" Wide at Middle (Widest Part).
Width @ Bottom:            1-13/16" Wide @ Bottom ( Just over 1-3/4" @ Bottom)
Height (without Top):        3-1/4" High from Top to Bottom.
Overall Height (with Top): 3-1/2" Tall (With Top Included.)

Recommended Stabilization:  To protect the drain from movement of the concrete, it is recommended to drill and pin the base of the drain midway, using a coated or non-metallic rigid reinforcement material.  The factory recommends their 3/8" fiberglass dowel (sold separately) for the two-piece drains and that you drill and pin the base at 3-foot intervals of the two-piece drains to help prevent damage caused by to the drain from concrete movement. The dowels are precut at 12-inch lengths, eliminating the need for to cut rebar on the job site. The dowels may be part of the reinforcement of the concrete slab, as their purpose is to hold the concrete apart, stabilizing the base of the drain.

NOTE: The use of proper “PPE” is required when handling fiberglass Drain Dowels.

Top Cap Colors: Listed below in order from top to bottom: White, Grey, Marble, Tan, Black. (Marble and Black are special order and may require an additional lead time.) These are scans of samples of the actual product. Colors are approximate and are intended to be true; however some colors can be seen differently due to human error and computer settings. Previously installed colors may look differently from age and the elements.)

This Product, when shipped by the 40' Carton, sold by the 5-Ft lengths, can usually be shipped via UPS or Fedex Ground.
